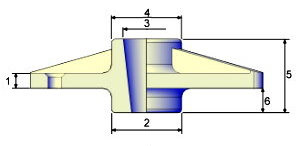

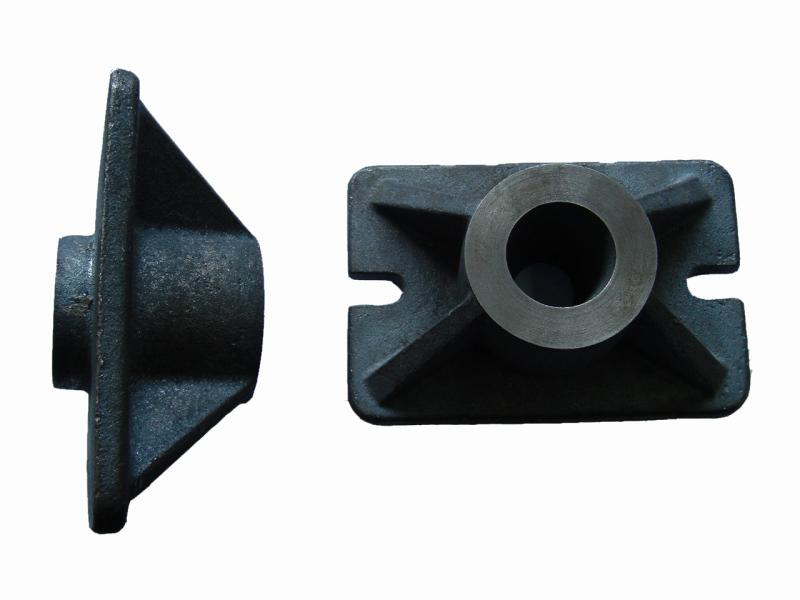

Post-Tensioning Mono Anchor Casting

Our post-tension anchor castings are an economical alternative to the post-tensioning chuck. Manufactured using high quality ductile iron and meet or exceed the requirements of the Post Tension Institute and International Building Code. Anchor castings are available for strand Sizes 600", 1/2", 7/16" and 3/8"

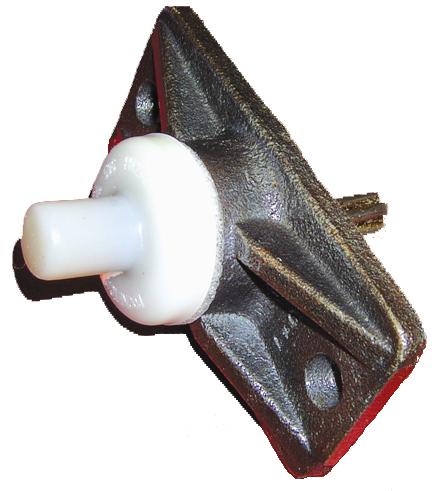

Pocket Cap

Universal Corrosion Protection Cap for all Post Tension Anchors. The PocketCap attaches to the "cut strand end", not the anchor

Product Details:
Test reports meeting the Post Tension Institute's requirements

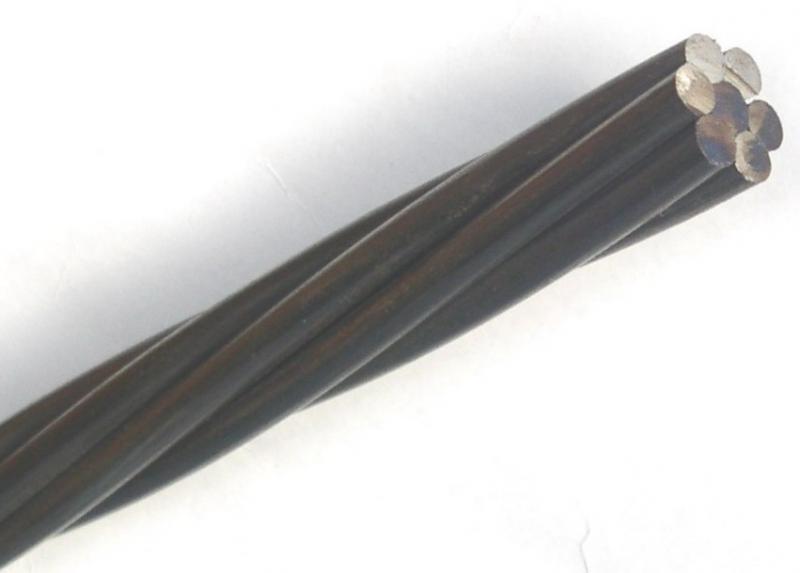

Unbonded pc strand: HDPE coated, 1*7pc strand filled with Grease PC Strand Standard. ASTM A416/1998,BS5896/1980, JISG3536 , 12.7mm, 15.24mm, 15.7mm

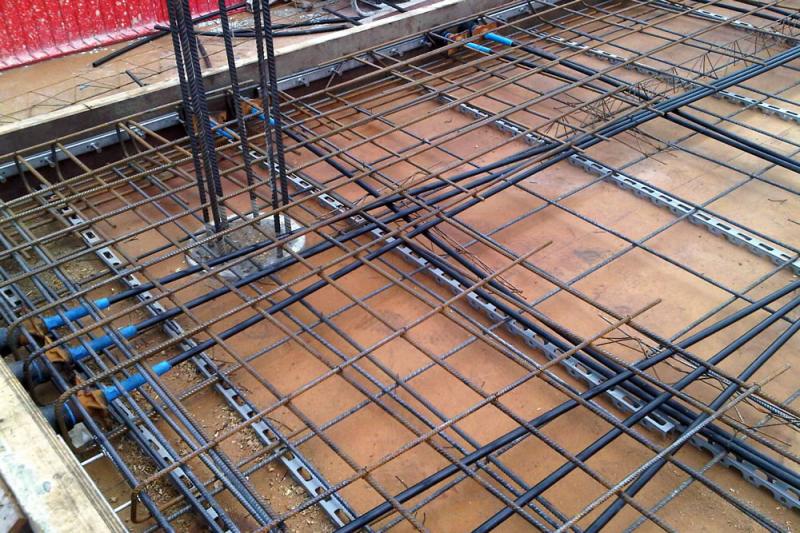

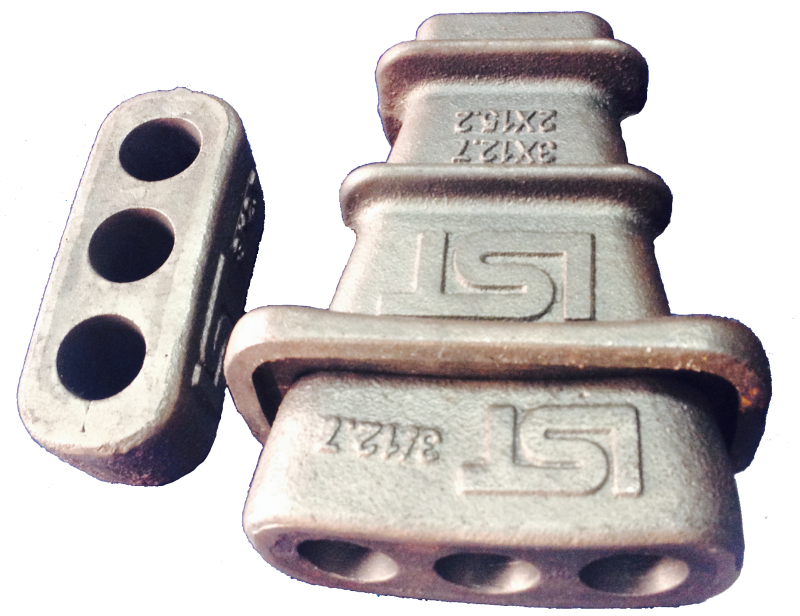

Bonded Flat slab S3 Anchors

Bonded flat slab S3 anchors use 2 No. 15.24mm seven-wire prestressing strands or 3 No. 12.7mm seven-wire prestressing strand and the maximum characteristic tensile strength of 1960 MPa.

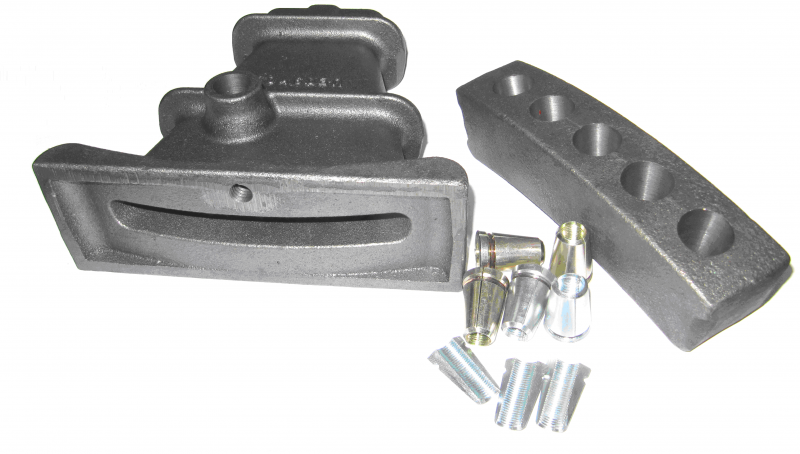

 Bonded Flat slab S5 Anchors

 Bonded flat slab S5 anchors use 4 No. 15.24mm seven-wire prestressing strands or 5 No. 12.7mm seven-wire prestressing strand and the maximum characteristic tensile strength of 1960 MPa.

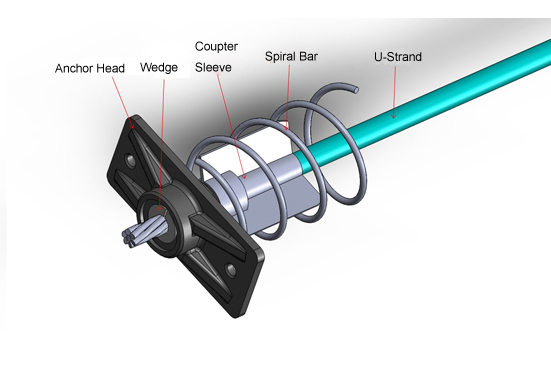

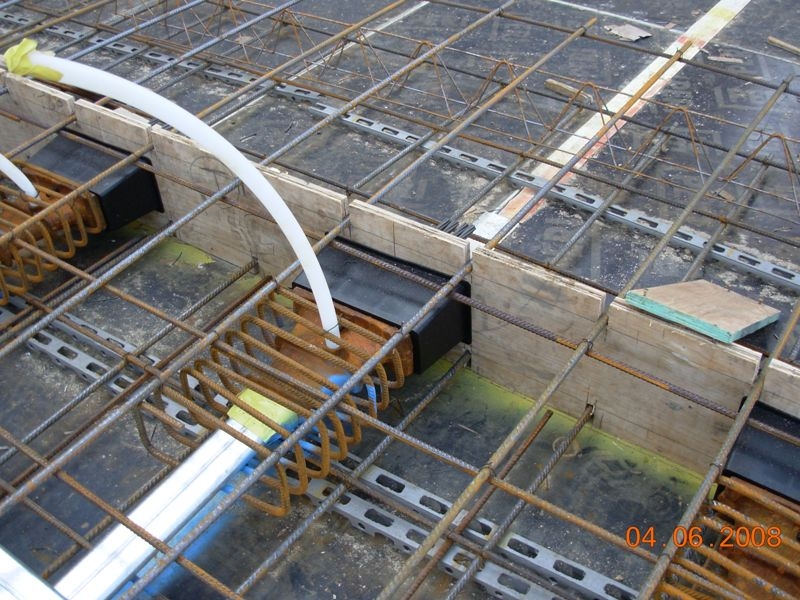

Local Zone Reinforcing

The compressive strength of the concrete in the local zone (area directly under the bearing plate) can be enhanced when necessary by use of lateral confinement of spiral reinforcement. The rebar spirals are available in #3 through #5 diameters of Grade 60 Rebar and made to the project design requirements for diameter, pitch, and length. They are also available with or without a deformation pattern.

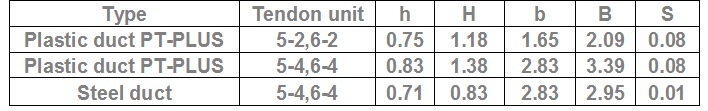

 Polypropylene & Polyethylene Corrugated Duct

 The stable characteristics of polypropylene & polyethylene duct are normally preferred where additional corrosion protection is desirable. Polypropylene Duct has been approved by the Florida DOT for internal tendons and is available in 2-3/8” diameter. Polyethylene Duct is available in 2”, 3”, and 4” diameter. Couplings and reducer couplings are available for all sizes.

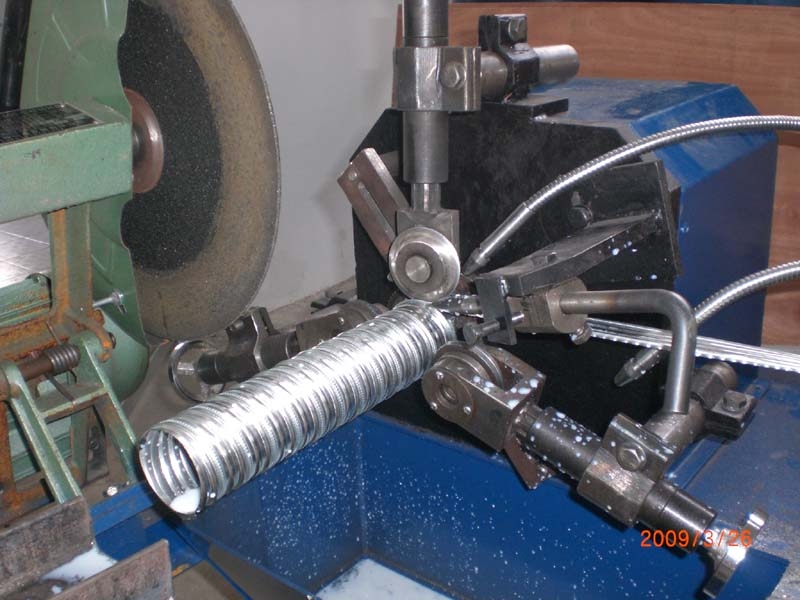

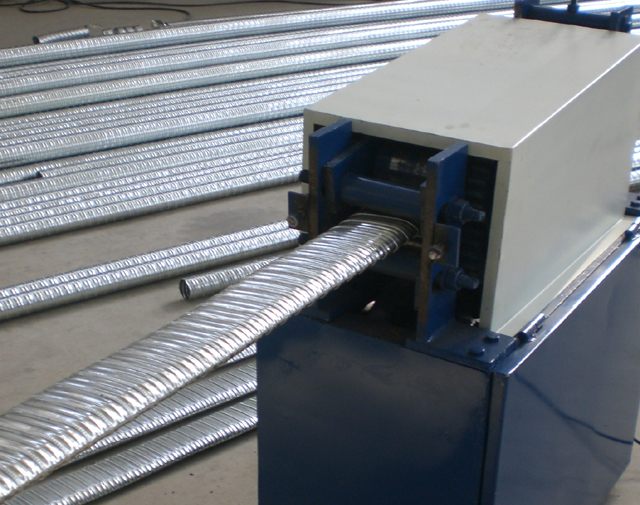

 Ducts

Galvanized Spiral Metal Duct or High Density Polyethylene Duct meets all physical and structural recommendations for post tensioning duct as laid down by the Post Tensioning Institute (of the United States). The Duct is available in 2”, 3”, and 4” diameter with couplings and reducer couplings for all sizes

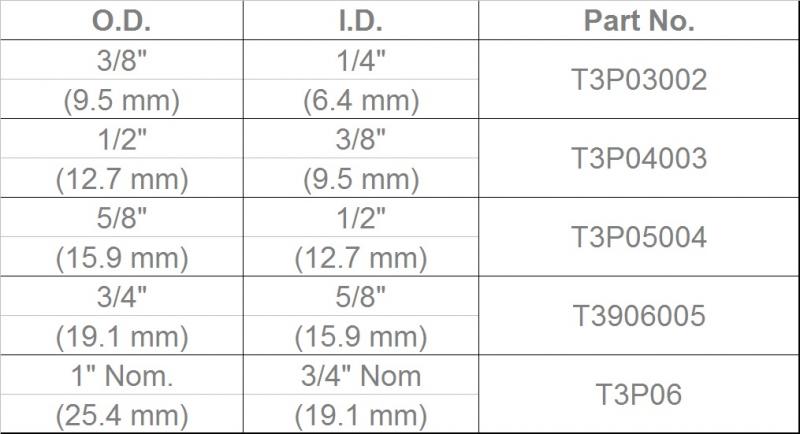

 Heavy Duty Plastic Grout Tube

Furnished in product lengths for the anchors or in rolls.
